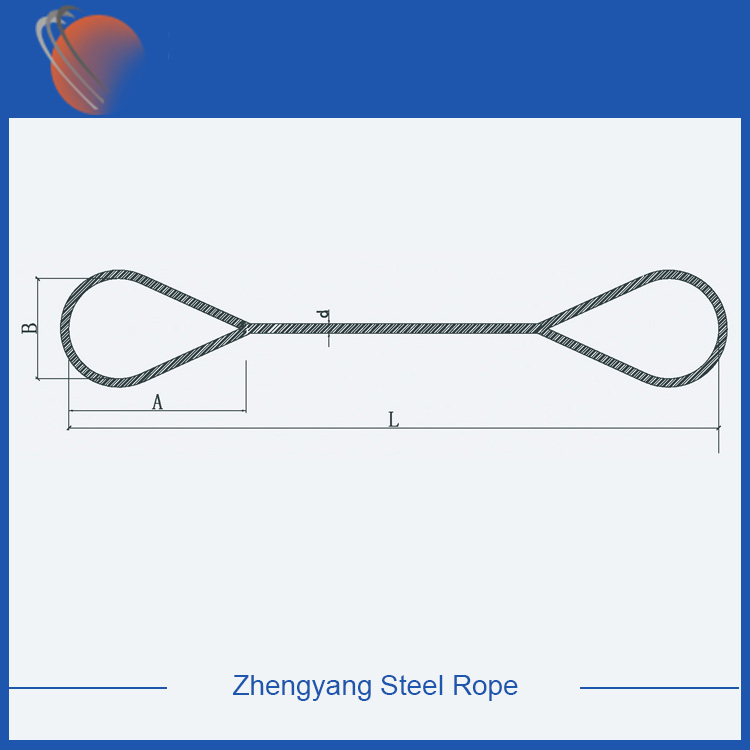

Cuerda dia. d (mm) |
Diámetro de bucle suave (mm) |
M.B.L (tonelada) |
W.L.L (tonelada) |
||
|
A |
B |
N = 5 |
N = 6 |
||
|
5 |
130 |
65 |
1.25 |
0.24 |
0.20 |
|
6 |
150 |
75 |
1.80 |
0.34 |
0.28 |
|
7 |
150 |
75 |
2.46 |
0.48 |
0.38 |
|
8 |
200 |
100 |
3.21 |
0.60 |
0.50 |
|
9 |
200 |
100 |
4.07 |
0.72 |
0.60 |
|
10 |
200 |
100 |
5.03 |
0.90 |
0.75 |
|
11 |
230 |
115 |
6.08 |
1.10 |
0.90 |
|
12 |
230 |
115 |
7.23 |
1.30 |
1.10 |
|
13 |
230 |
115 |
8.49 |
1.50 |
1.30 |
|
14 |
250 |
125 |
9.85 |
1.80 |
1.50 |
|
16 |
300 |
150 |
12.85 |
2.30 |
1.90 |
|
18 |
300 |
150 |
16.32 |
2.90 |
2.40 |
|
20 |
350 |
175 |
20.09 |
3.60 |
3.00 |
|
22 |
350 |
175 |
24.27 |
3.90 |
3.20 |
|
24 |
450 |
225 |
28.96 |
4.60 |
3.90 |
|
26 |
450 |
225 |
33.96 |
5.40 |
4.50 |
|
28 |
500 |
250 |
39.36 |
6.30 |
5.20 |
|
30 |
500 |
250 |
45.17 |
7.20 |
6.00 |
|
32 |
550 |
275 |
51.39 |
7.70 |
6.40 |
|
34 |
600 |
300 |
58.12 |
8.70 |
7.30 |
|
36 |
600 |
300 |
65.06 |
9.80 |
8.10 |
|
38 |
600 |
300 |
72.50 |
10.90 |
9.10 |
|
40 |
700 |
350 |
80.35 |
12.10 |
10.00 |
|
42 |
800 |
400 |
88.61 |
12.40 |
10.30 |
|
44 |
800 |
400 |
97.28 |
13.60 |
11.30 |
|
46 |
900 |
450 |
106.05 |
14.80 |
12.40 |
|
48 |
900 |
450 |
116.25 |
16.30 |
13.60 |
|
50 |
1000 |
500 |
125.43 |
17.60 |
14.60 |
|
52 |
1000 |
500 |
135.62 |
19.00 |
15.80 |
